Schema constructie cablu VGA, semnificatie legaturi pini

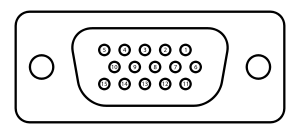

 mufa VGA mama privita din fata

5   4   3   2   1

   10   9   8   7   6

15 14 13 12 11

Pin 1 RED Rosu video
Pin 2 GREEN Verde video
Pin 3 BLUE Albastru video
Pin 4 ID2/RES formerly Monitor ID bit 2, reserved since E-DDC
Pin 5 GND Ground (HSync)
Pin 6 RED_RTN Rosu return
Pin 7 GREEN_RTN verde return
Pin 8 BLUE_RTN Albastru return
Pin 9 KEY/PWR formerly key, now +5V DC
Pin 10 GND Ground (VSync, DDC)
Pin 11 ID0/RES formerly Monitor ID bit 0, reserved since E-DDC
Pin 12 ID1/SDA formerly Monitor ID bit 1, IC data since DDC2
Pin 13 HSync Horizontal sync
Pin 14 VSync Vertical sync
Pin 15 ID3/SCL formerly Monitor ID bit 3, IC clock since DDC2
