Schema constructie cablu HDMI, semnificatie legaturi pini



Cablu HDMI

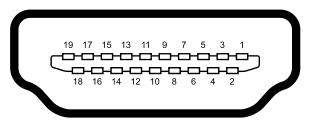

Mufa mama privita din fata

Pin 1 TMDS Data2+
Pin 2 TMDS Data2 Shield
Pin 3 TMDS Data2
Pin 4 TMDS Data1+
Pin 5 TMDS Data1 Shield
Pin 6 TMDS Data1
Pin 7 TMDS Data0+
Pin 8 TMDS Data0 Shield
Pin 9 TMDS Data0
Pin 10 TMDS Clock+
Pin 11 TMDS Clock Shield
Pin 12 TMDS Clock
Pin 13 CEC
Pin 14 Reserved (HDMI 1.0-1.3c), HEC Data- (Optional, HDMI 1.4+ with Ethernet)
Pin 15 SCL (IC Serial Clock for DDC)
Pin 16 SDA (IC Serial Data Line for DDC)
Pin 17 DDC/CEC/HEC Ground
Pin 18 +5 V Power (max 50 mA)
Pin 19 Hot Plug Detect (All versions) and HEC Data+ (Optional, HDMI 1.4+ with Ethernet
